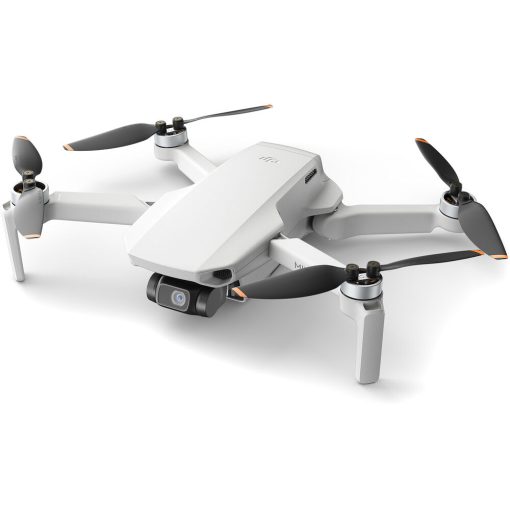

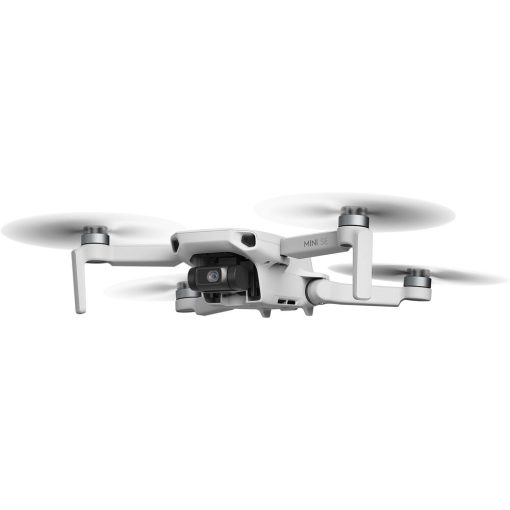

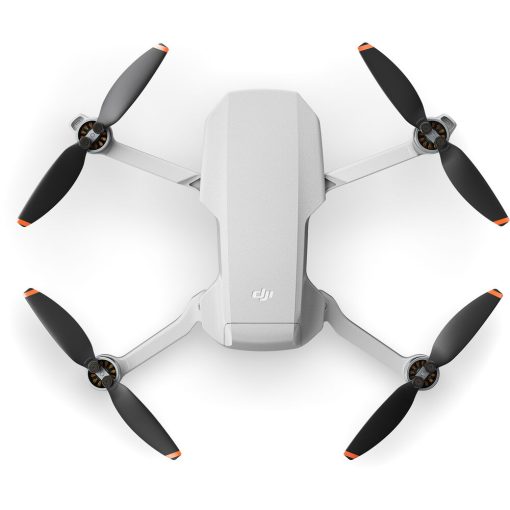

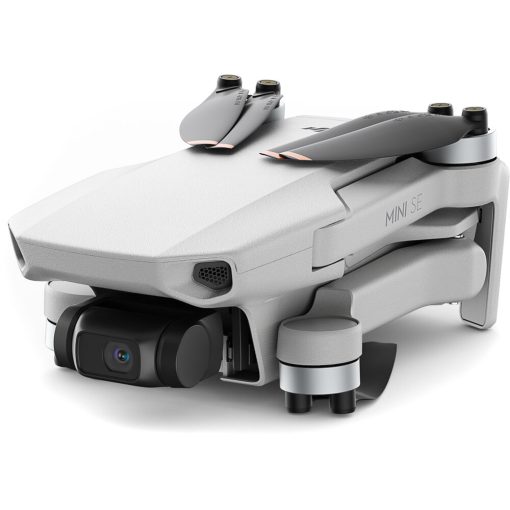

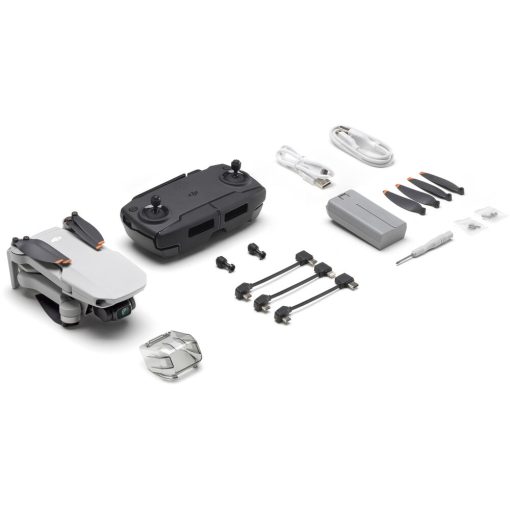

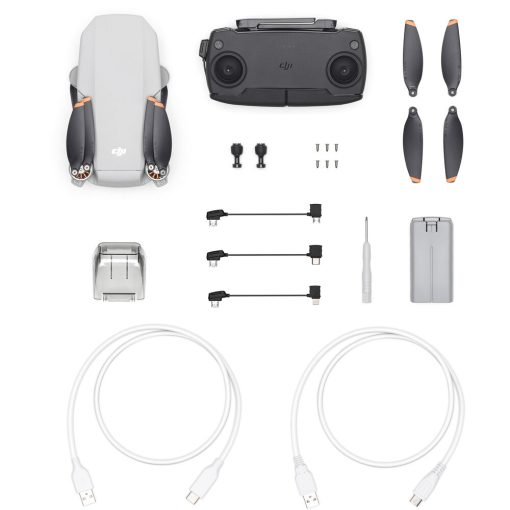

DJI Mini SE Combo (ประกันศูนย์ไทย) (By Order)

• Takeoff Weight

• < 249 g

• Dimensions

• Folded: 138×81×58 mm (L×W×H)
  Unfolded: 159×203×56 mm (L×W×H)
  Unfolded (with propellers): 245×289×56 mm (L×W×H)

• Diagonal Distance

• 213 mm

• Max Ascent Speed

• 4 m/s (S Mode)
  2 m/s (P Mode)
  1.5 m/s (C Mode)

• Max Descent Speed

• 3 m/s (S Mode)
  1.8 m/s (P Mode)
  1 m/s (C Mode)

• Max Speed (near sea level, no wind)

• 13 m/s (S Mode)
  8 m/s (P Mode)
  4 m/s (C Mode)

• Maximum Takeoff Altitude

• 3000 m

• Max Flight Time

• 30 minutes (measured while flying at 17 kph in windless conditions)

• Max Wind Speed Resistance

• 8.5 m/s to 10.5m/s (Scale 5)

• Max Tilt Angle

• 30° (S Mode)
  20° (P Mode)
  20° (C Mode)

• Max Angular Velocity

• 150°/s (S Mode)
  130°/s (P Mode)
  30°/s (C Mode)

• Operating Temperature Range

• 0° to 40°C (32° to 104°F)

• Operating Frequency

• Model MT2SS5: 5.725-5.850 GHz
  Model MT2SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz

• Transmission Power (EIRP)

• Model MT2SS5
  5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
  Model MT2SD25
  2.4 GHz: <19 dBm (MIC/CE)
  5.8 GHz: <14 dBm (CE)

• GNSS

• GPS+GLONASS

• Hovering Accuracy Range

• Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
  Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal

• Mechanical Range

• Tilt: -110° to 35°
  Roll: -35° to 35°
  Pan: -20° to 20°

• Controllable Range

• Tilt: -90° to 0° (default setting) -90° to +20° (extended)

• Stabilization

• 3-axis (tilt, roll, pan)

• Max Control Speed (tilt)

• 120°/s

• Angular Vibration Range

• ±0.01°

Sensing System

• Downward

• Operating Range: 0.5-10 m

• Operating Environment

• Non-reflective, discernable surfaces
  Diffuse reflectivity (>20%)
  Adequate lighting (lux>15)

Camera

• Sensor

• 1/2.3” CMOS
  Effective Pixels: 12 MP

• Lens

• FOV: 83°
  35 mm Format Equivalent: 24 mm
  Aperture: f/2.8
  Shooting Range: 1 m to ∞

• ISO Range

• Video:
  100-3200 (Auto)
  100-3200 (Manual)
  Photo:
  100-3200 (Auto)
  100-3200 (Manual)

• Shutter Speed

• Electronic Shutter: 4-1/8000s

• Still Image Size

• 4:3: 4000×3000
  16:9: 4000×2250

• Still Photography Modes

• Single shot
  Interval: 2/3/5/7/10/15/20/30/60 s

• Video Resolution

• 2.7K：2720×1530 24/25/30 p
  FHD：1920×1080 24/25/30/48/50/60 p

• Max Video Bitrate

• 40 Mbps

• Supported File System

• FAT32（≤32 GB）
  exFAT（>32 GB）

• Photo Format

• JPEG

• Video Format

• MP4 (H.264/MPEG-4 AVC）

Remote Controller & Video Transmission

• Operating Frequency

• Model MR1SS5: 5.725-5.850 GHz
  Model MR1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz

• Max Transmission Distance (unobstructed, free of interference)

• Model MR1SS5
  5.8 GHz: 4000 m (FCC); 2500 m (SRRC)
  Model MR1SD25
  2.4 GHz: 2000 m (MIC/CE)
  5.8 GHz: 500 m (CE)

• Operating Temperature Range

• 0° to 40°C (32° to 104°F)

• Transmission Power (EIRP)

• Model MR1SS5
  5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
  Model MR1SD25
  2.4 GHz: <19 dBm (MIC/CE)
  5.8 GHz: <14 dBm (CE)

• Battery Capacity

• 2600 mAh

• Operating Current/Voltage

• 1200 mA 3.6 V (Android)
  450 mA 3.6 V (iOS)

• Supported Mobile Device Size

• Max length: 160 mm
  Max thickness: 6.5-8.5 mm

• Supported USB Port Types

• Lightning, Micro USB (Type-B), USB Type-C

• Video Transmission System

• Enhanced Wi-Fi

• Live View Quality

• 720p/30fps

• Max. Bitrate

• 4 Mbps

• Latency (depending on environmental conditions and mobile device)

• 170-240 ms

Charger

• Input

• 100-240 V, 50/60 Hz, 0.5A

• Output

• 12V 1.5 A / 9V 2A / 5V 3A

• Rated Power

• 18 W

Intelligent Flight Battery

• Capacity

• 2250 mAh

• Voltage

• 7.7 V

• Max Charging Voltage

• 8.8 V

• Battery Type

• LiPo 2S

• Energy

• 17.32 Wh

• Net Weight

• 82.5 g

• Charging Temperature Range

• 5° to 40°C (41° to 104°F)

• Max Charging Power

• 29 W

APP

• Name

• DJI Fly

• Required Operating System

• iOS v10.0 or later Android v6.0 or later

Supported SD Cards

• Supported SD Cards

• UHS-I Speed Class 3 or above is required. A list of reccomended microSD cards can be found below.

• Recommended microSD Cards

• 16GB: SanDisk Extreme
  32GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Industrial, SanDisk Extreme V30 A2, SanDisk Extreme Pro V30 A1, SanDisk Extreme Pro V30 A2, Lexar 633x, Lexar 667x
  64GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Extreme V30 A1, SanDisk Extreme V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
  128GB: Samsung Evo Plus, SanDisk Extreme V30 A2, SanDisk Extreme Plus V30 A1, SanDisk Extreme Plus V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
  256GB: SanDisk Extreme V30 A2

Footnotes

• Footnotes

• 1. The standard weight of the aircraft (including battery, propellers, and a microSD card) is 242 grams. Actual product weight may vary. Registration is not required in some countries and regions. Check local rules and regulations before use. These specifications have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
  2. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time.
  3.Maximum flight range specification is a proxy for radio link strength and resilience, not aircraft battery capability. It only refers to the maximum, one-way flight distance. Data was measured in an open environment without interference. Please pay attention to the return prompt on the DJI Fly app during actual flight. Refer to the following applicable standard in different countries and regions:
  FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions;
  SRRC: Mainland China;
  CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions;
  MIC: Japan.
  4. Charger sold separately
