The First X Series model featuring a new back-illuminated sensor
The FUJIFILM X-T3 features a newly-developed back-illuminated “X-Trans* CMOS 4” sensor, the fourth generation to feature in the X Series. Boasting a resolution of 26.1MP, the sensor uses a unique color filter array, synonymous to X-Trans CMOS sensors, to control moir? and false color without the use of an optical low-pass filter. Its back-illuminated structure enhances image quality while maintaining a high S/N ratio. Furthermore, ISO160, previously available only as extended ISO, is now part of the normal ISO range, allowing you to achieve incredibly clean, noise free images.
The brain that utilizes the full potential of the X-Trans CMOS 4 sensor
The FUJIFILM X-T3 uses the X-Processor 4, an evolved version of X Series’ image processing engine that boasts advanced processing capabilities. The new processor, combined with a new algorithm, enhances the Film Simulation modes, substantially improving the camera’s ability to track moving subjects, boosts AF’s speed and accuracy, and allows for a more diverse range of video functions. It maximizes the full potential of X-Trans CMOS 4 sensor to deliver the highest performance in all aspects in the history of X Series.
- *X-Trans is a trademark or registered trademark of FUJIFILM Corporation.
- **When using the BOOST mode
- ***When using the electronic shutter; Up to 11fps when using the mechanical shutter
Large EVF means you’ll never lose sight of your subject
The FUJIFILM X-T3 features a 3.69-million-dot high resolution EVF with a high magnification ratio of 0.75x. The display time lag of just 0.005 seconds and refresh rate of approx. 100fps* ensure smooth display and allows you to precisely identify subject movements and focus positions.
Blackout-free high-speed continuous shooting of up to 30 fps with AF/AE tracking
Increased read speed from the sensor and the new high-speed processor have made it possible to have AF/AE-tracking, blackout-free continuous shooting of up to 30 fps** in approx. 16.6M (1.25x crop) mode using the electronic shutter, while maintaining a smooth Live View of 60fps to track your subject. The rolling shutter distortion, a typical issue for electronic shutters, has been halved compared to the previous generation.
Sports finder mode for enhanced shooting
The “Sports finder mode” makes it even easier to capture moving subjects. The new mode marks a cropped area in the viewfinder and shoots at approx. 16.6M (1.25x crop). This is particularly useful for sports and wildlife photography, as you can check the movements of a subject just outside the shooting frame and take advantage of shorter-than-usual blackout time as compared with the mechanical shutter.
- *When using the BOOST mode
- **When using the electronic shutter; Up to 11fps when using the mechanical shutter
Film Simulation modes for a variety of color tones and gradations
The FUJIFILM X-T3 offers 16 Film Simulation modes so that you can match your true photographic intention in a similar way to how photographers used to choose purpose-specific photographic films. This unique philosophy reflects Fujifilm’s heritage and color science know-how, nurtured by over 80 years of film manufacturing.
Cutting-edge monochrome expression for the digital age
The FUJIFILM X-T3 offers the new “monochrome adjustment” function to faithfully reproduce warm and cool tones which were conventionally achieved using specific photographic papers and developers. This function, available in the standard “Monochrome” as well as the “ACROS” mode, provide smooth halftones, deep blacks, and beautiful textures to broaden the scope of monochrome expression.
Color Chrome effect for high saturation subjects
This effect produces deeper colors and gradation in subjects with highly saturated colors present in vivid and shaded flowers, which are notoriously difficult to photograph.
Fast and accurate phase detection AF across the frame
The FUJIFILM X-T3’s sensor has increased the phase detection AF area to the entire frame (approx. 100%) with 2.16M phase detection pixels. The low-light AF sensitivity has also been extended from -1EV to -3EV, enabling high-speed AF in even lower light conditions, like a scene lit only with candlelight.
Enhanced AF processing for moving subject
The X-Processor 4’s high processing speed and improved phase detection algorithm means the camera refocuses (AF) and meters (AE) about 1.5 times more frequently than current models to improve autofocus even when shooting sports involving fast and erratic movements across the frame.
Substantially improved performance with face- and eye-detection AF
The performance of face-detection AF on a moving person has been doubled. The eye-detection AF works in AF-C mode, maintaining accurate focus-tracking with portraits. It focuses precisely when shooting people from the front or side.
11fps continuous shooting with camera body only
Continuous shooting of 11fps with the mechanical shutter no longer requires the optional vertical grip.
4K/60P 10bit HDMI output and internal SD card recording
The FUJIFILM X-T3 is our first model that features 4K/60P 4:2:2 10bit HDMI output and 4K/60P 4:2:0 10bit internal SD card recording. Supported video formats include the widely-used H.264/MPEG-4 AVC as well as H.265/HEVC for greater data compression. This enables 200Mbps bitrate recording when shooting 4K/60P 4:2:0 10bit. Video compression options available are ALL-Intra* and Long GOP. When using ALL-Intra*, video is recorded at 400Mbps**.
Enhanced ISO performance for a wider scope of video expressions
The introduction of a new noise reduction process and new “4K interframe NR” function have reduced noise at ISO12800 by the equivalent of approx. 2 stops. The NR process has a greater level of noise-identifying accuracy for appropriate denoising performance. The 4K interframe NR function uses differential data between adjacent frames to reduce noise even further. Furthermore, the minimum sensitivity for shooting F-Log and with the setting of DR400% footage has been extended from ISO800 to ISO640.
Further expansion of video functions with firmware update
Available at the end of 2018 via firmware update, the FUJIFILM X-T3 will support video recording in the Hybrid Log Gamma (HLG), one of the formats defined in the ITU-R BT.2100 international standards. In response to user feedback, the firmware update will also allow the FUJIFILM X-T3 to simultaneously output Film Simulation and F-Log footage, further expanding its video functions.
Greater freedom of gradations with 10bit color depth
The FUJIFILM X-T3’s 10bit color depth has 64 times the color information versus an 8bit depth system. With the wide dynamic range of 400% (approx. 12 stops), it enables gradation-rich video recording when applying “ETERNA”, characterized by subdued color and rich shadow tones, or “F-Log,” which is a gamma curve option with an even wider dynamic range.
Simultaneous output of 4K HDMI and internal SD card recording
The FUJIFILM X-T3 supports 4K/60P 4:2:2 10bit HDMI output and 4K/60P 4:2:0 10bit internal SD card recording simultaneously. This allows you to take backup video or conduct 4K/60P internal SD card recording while monitoring 4K/60P footage. Also, the sensor’s read speed is about 1.5 times faster than current models, which enables fast 17msec reading of 4K/60P video. The rolling shutter distortion has been reduced for even smoother filming of fast-moving subjects.
Movie Recording Mode
- *Available at 4K/29.97P, 25P, 24P, 23.98P, and FHD/59.94P, 50P, 29.97P, 25P, 24P, 23.98P when H.265/HEVC is selected. Not compatible with H.264.
- **Available at 4K/29.97P, 25P, 24P or 23.98P
Requires an SD card with the video speed class of V60 or above to record at the bitrate of 400Mbps
- ***Not compatible with DCI4K.
- *4Codec and bit rate will be changed depends on the recorder.
Design / Operability
Design inherits FUJIFILM X-T2’s philosophy
The FUJIFILM X-T3 inherits FUJIFILM X-T2’s popular design features such as the positioning of dials on the top panel, central viewfinder style for added sense of stability, and excellent grip design for comfort.
Silver as standard color
The silver color is lineup as standard, which features more classical tone compared with graphite silver, limited edition for previous models. Its styling that reminds you of traditional film cameras is combined with outstanding practicality, making it photographic equipment that is a pleasure to own for many years to come.
Lockable EVF’s diopter adjustment dial
EVF’s diopter adjustment is lockable achieved by pulling out and rotating a diopter knob, so as to prevent unintended adjustments while carrying the camera.

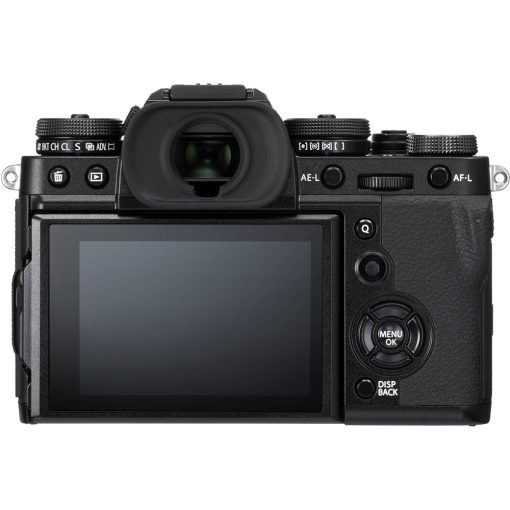

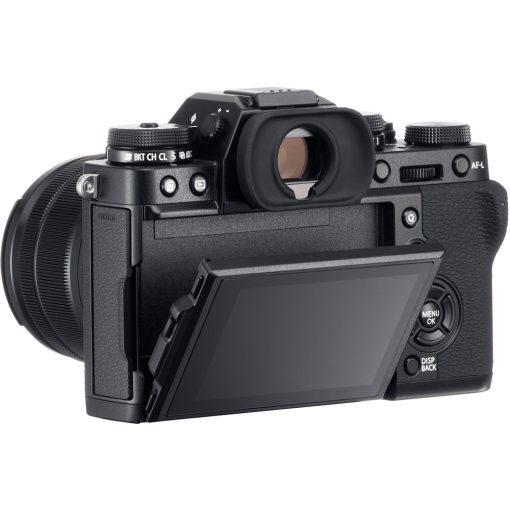

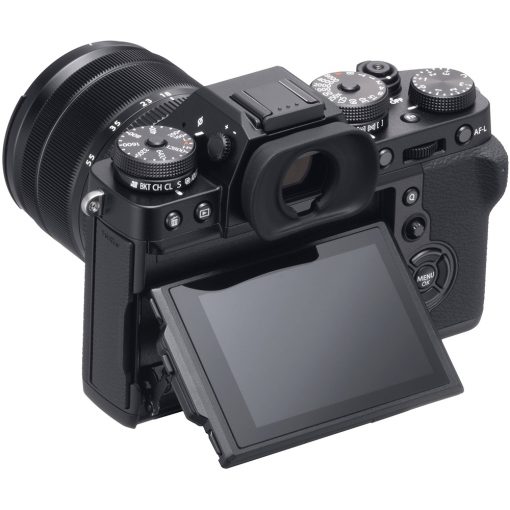

Touchscreen panel tilts in 3 directions
The FUJIFILM X-T3 uses a touchscreen panel with higher contrast, wider viewing angle and better operability than those in previous models to enable intuitive operation.

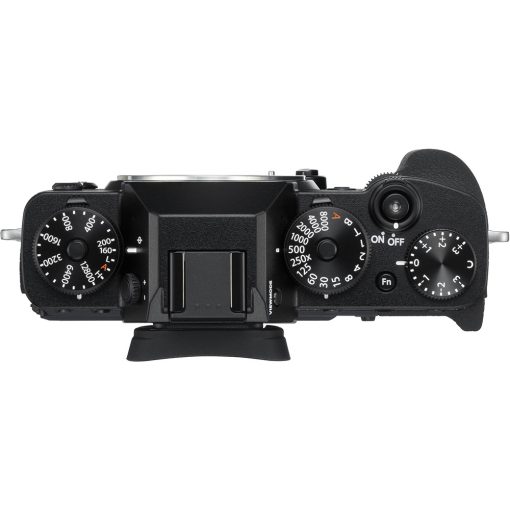

Improved dials and buttons
The FUJIFILM X-T3 inherits FUJIFILM X-H1’s features such as large top-panel dials / rear-panel buttons and comfortable clicking touch of front and rear command dials.

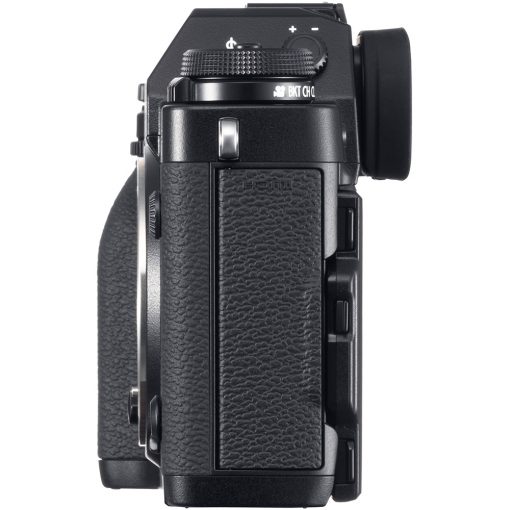

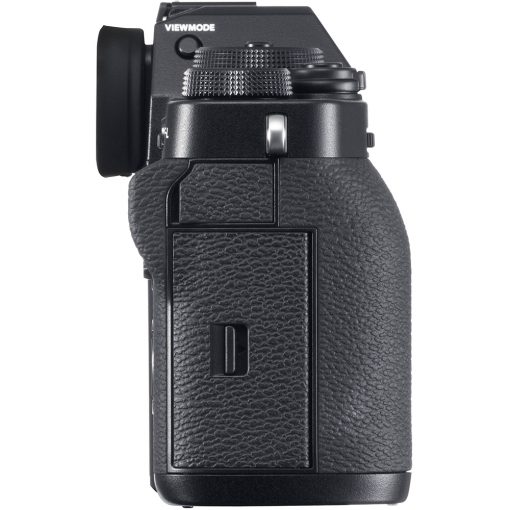

Terminal with high expandability

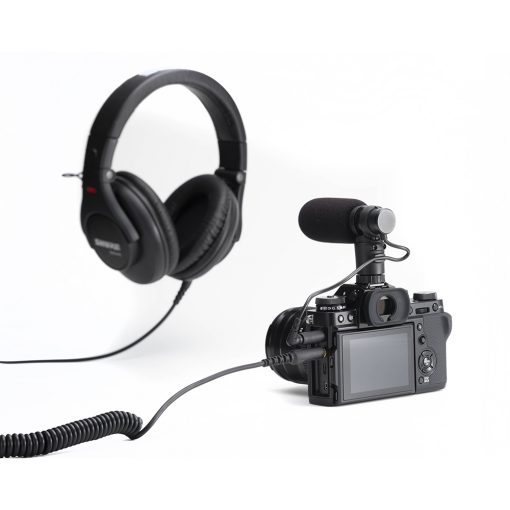

A headphone jack is provided on the camera body so that all accessories required for video recording, such as microphone and HDMI devices can be centrally connected to the body for added mobility in videography.
Also, the terminal cover is removable, and USB terminal supports USB-Type C (USB3.1 Gen1) specification.
By installing compatible software on your computer, it is possible to build an all-in-one workflow for things like “tethered shooting – checking the image – RAW development preview – RAW development”. In addition to FUJIFILM’s own software, you can use software that you are already familiar with. You can carry out tethered shooting by connecting the FUJIFILM X-T3 via USB cable or Wi-Fi connection through wireless LAN access point. Also, RAW files can be developed based on Film Simulation settings.
FUJIFILM X Acquire + RAW FILE CONVERTER EX 3.0 powered by SILKYPIX
FUJIFILM Tether Shooting Plug-in PRO* + Adobe? Photoshop? Lightroom? Classic CC*
FUJIFILM X RAW STUDIO
This is unique RAW development software from FUJIFIILM. By connecting a computer installed with X RAW STUDIO and camera via USB cable, the processor in the camera can be used to process RAW files. Processing time will not be affected by any limitations of your computer, and there is no difficulty in batch processing large number of images. Since it offers an optimized environment for the X Series, you can get complete image quality includes tone, color reproduction, and Film Simulations.
The FUJIFILM X-T3 can be constantly paired to a smartphone or tablet device through Bluetooth connection** for automatic transfer of captured images.
* Separate purchase required
** Requires the installation of a free app “FUJIFILM Camera Remote
*** Anker and PowerCore are trademark or registered trademark of Anker Innovations Limited or associated companies.
**** Product may not be available on your country.
|Model Name||FUJIFILM X-T3|
|Number of effective pixels||26.1 millions pixels|
|Image sensor||23.5mm?15.6mm (APS-C) X-Trans CMOS 4 with primary color filter.

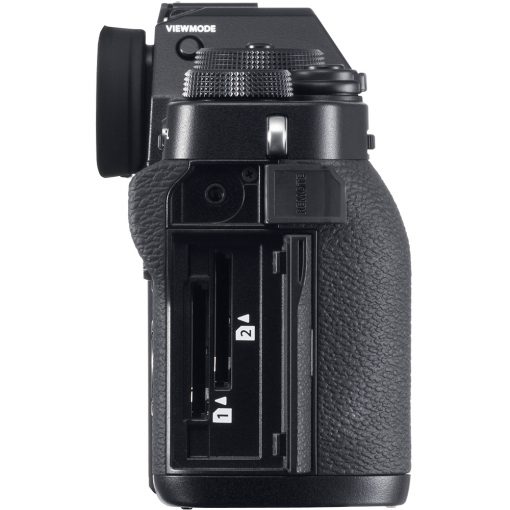

|Storage media||SD memory card (-2GB) / SDHC memory card (-32GB) / SDXC memory card (-512GB)
UHS-I / UHS-II / Video Speed Class V90 *1
|Number of recorded pixels||L: (3:2) 6240 x 4160 / (16:9) 6240 x 3512 / (1:1) 4160 x 4160
M: (3:2) 4416 x 2944 / (16:9) 4416 x 2488 / (1:1) 2944 x 2944
S: (3:2) 3120 x 2080 / (16:9) 3120 x 1760 / (1:1) 2080 x 2080
|Lens mount||FUJIFILM X mount|
|Sensitivity||Standard Output Sensitivity : AUTO1 / AUTO2 / AUTO3(up to ISO12800) / ISO160 to 12800(1/3 step)
Extended output sensitivity : ISO80 /100 /125 / 25600 / 51200
|Exposure control||TTL 256-zone metering, Multi / Spot / Average / Center Weighted|
|Exposure mode||P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure)|
|Exposure compensation||-5.0EV – +5.0EV, 1/3EV step
(movie recording : -2.0EV – +2.0EV)
|Image Stabilizer||Supported with OIS type lenses|
|Shutter type||Focal Plane Shutter|
|Continuous shooting||Approx. 30fps [Only electronic shutter, 1.25 x Crop ] (JPEG? 60 frames Lossless compression RAW? 35 frames Uncompressed RAW? 33 frames)
Approx. 20fps [Only electronic shutter, 1.25 x Crop ] (JPEG? 114 frames Lossless compression RAW? 37 frames Uncompressed RAW? 34 frames)
Approx. 10fps [Only electronic shutter, 1.25 x Crop ] (JPEG? 500 frames Lossless compression RAW? 48 frames Uncompressed RAW? 39 frames)
Approx. 20fps [Only electronic shutter ] (JPEG: 79 frames Lossless compression RAW: 36 frames Uncompressed RAW: 34 frames)
Approx. 11fps (JPEG: 145 frames Lossless compression RAW: 42 frames Uncompressed RAW: 36 frames)
Approx. 8.0fps (JPEG: 200 frames Lossless compression RAW: 49 frames Uncompressed RAW: 39 frames)
Approx. 5.7fps (JPEG: endless Lossless Compression RAW: 62 frames Uncompressed RAW: 43 frames)
Pre-shot: Approx. 30fps [Only electronic shutter, 1.25 x Crop ] (max. 20 frames while half press, max. 20 frames after full press, total max. 40 frames)
Pre-shot: Approx. 20fps [Only electronic shutter, 1.25 x Crop ] (max. 20 frames while half press, max. 37 frames after full press, total max. 57 frames)
Pre-shot: Approx. 10fps [Only electronic shutter, 1.25 x Crop ] (max. 10 frames while half press, max. 300 frames after full press, total max. 310 frames)
- * Recordable frames depends on recording media
- * Speed of continuous shooting depends on shooting environment and shooting frames
Auto bracketingAE Bracketing (Frames: -2, -3, +3, +2, ?9, ?7, ?5, ?3 Step: 1/3EV, 2/3EV, 1EV, 4/3EV?5/3EV?2EV?7/3EV?8/3EV?3EV)
Film Simulation bracketing (Any 3 types of film simulation selectable)
Dynamic Range Bracketing (100%, 200%, 400%)
ISO sensitivity Bracketing (?1/3EV, ?2/3EV, ?1EV)
White Balance Bracketing (?1, ?2, ?3)
Focus Bracketing (Frames: 1-999, Step: 1-10, Interval: 0-10s)Focus
- Single AF / Continuous AF / MF
- Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
- AF frame selection
- Single point AF: EVF / LCD: 13?9 / 25?17 (Changeable size of AF frame)
Zone AF: 3?3 / 5?5 / 7?7 from 91 areas on 13?9 grid
Wide/Tracking AF: (up to 18 area) * AF-S: Wide / AF-C: Tracking
White balanceAutomatic Scene recognition / Custom1-3 / Color temperature selection (2500K~10000K) / Preset: Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, UnderwaterSelf-timer10sec. / 2sec.Interval timer shootingYes (Setting : Interval, Number of shots, Starting time)Flash modes
- SYNC. MODE
- 1ST CURTAIN / 2ND CURTAIN / AUTO FP(HSS) (excl. EF-X8)
- FLASH MODE
- TTL (TTL AUTO (P mode) / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF (When EF-X8 is set)
TTL (TTL AUTO (P mode) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI / OFF (When SHOE MOUNT FLASH is set)
Hot shoeYes (Dedicated TTL Flash compatible)Viewfinder0.5 inch approx. 3.69 millions dots OLED Color Viewfinder
Coverage of viewing area vs. capturing area: approx. 100%
Eyepoint: approx. 23mm (from the eyepiece lens) Diopter adjustment: -4-+2m-1 (lockable)
Magnification: 0.75x with 50mm lens (35mm equivalent) at infinity and diopter set to -1m-1
Diagonal angle of view: approx. 38? (Horizontal angle of view: approx. 30? )
Built-in eye sensorLCD monitor3.0 inch, aspect ratio 3:2, approx. 1.04 millions dots touch screen color LCD monitor(approx. 100% coverage)Movie recording
- File format
- MOV (MPEG-4 AVC/H.264, HEVC/H.265, Audio: Linear PCM / Stereo sound 24bit / 48KHz sampling)
- Movie compression
- All Intra/Long-GOP
- * All Intra can be used with following settings.
DCI4K/4K 29.97p/25p/24p/23.98p 400Mbps
Full HD(2048?1080)/Full HD(1920?1080) 59.94p/50p/29.97p/25p/24p/23.98p?200Mbps
- * All Intra can be used with following settings.
- File size / Frame rate / Recording time
- [DCI 4K(4096?2160)]
59.94p/50p: up to approx. 20min. 29.97p/25p/24p/23.98p: up to approx. 30min[4K(3840?2160)] 59.94p/50p/29.97p/25p/24p/23.98p 400Mbps/200Mbps/100Mbps
59.94p/50p: up to approx. 20min. 29.97p/25p/24p/23.98p: up to approx. 30min[Full HD(2048 ?1080)] 59.94p/50p/29.97p/25p/24p/23.98p 200Mbps/100Mbps/50Mbps up to approx. 30min.[Full HD(1920?1080)] 59.94p/50p/29.97p/25p/24p/23.98p 200Mbps/100Mbps/50Mbps up to approx. 30min.[Full HD(1920?1080) High speed rec.] 120p/100p 200Mbps(recording) up to approx. 6min.
- * For recording movies, use a SD memory card with UHS Speed Class 3 or higher.
- * For recording movies in 400Mbps, use a SD memory card with Video Speed Class 60 or higher.
- * Recording movies in 400Mbps can be done with DCI4K/4K 29.97p/25p/24p/23.98p.
- * DCI4K 59.94p/50p is not available when H.264 is selected.
- * Although movie recording will continue without interruption when the file size reaches 4GB, subsequent footage will be recorded to a separate file which must be viewed separately.
Film Simulation mode16 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Black & White, Black & White+Ye Filter, Black & White+R Filter, Black & White+G Filter, Sepia, ACROS, ACROS+Ye Filter, ACROS+R Filter, ACROS+G Filter, ETERNA/Cinema)
B & W Adjustment: -9-+9Grain effectSTRONG, WEAK, OFFColor chrome effectSTRONG, WEAK, OFFDynamic range settingAUTO, 100%, 200%, 400%
ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)Advanced filterToy camera, Miniature, Pop color, High-key, Low-key, Dynamic tone, Soft focus, Partial color (Red / Orange / Yellow / Green / Blue / Purple)Wireless transmitter
- IEEE 802.11b / g / n (standard wireless protocol)
- WEP / WPA / WPA2 mixed mode
- Access mode
- Bluetooth Ver. 4.2 (Bluetooth low energy)
- Operating frequency
- 2402 – 2480MHz
- Digital interface
- USB Type-C (USB3.1 Gen1)
- HDMI output
- HDMI micro connector (Type D)
- ?3.5mm, stereo mini connector (Microphone) / ?3.5mm, stereo mini connector (headphone) / ?2.5mm, Remote Release Connector
Hot shoe, Synchronized terminal
NP-W126S Li-ion battery (included)
- Battery life for still images*4
- Approx. 390 frames (NORMAL MODE) When XF35mmF1.4 R is set.
- Actual battery life of movie capture*4
- *Face detection is set to OFF
- [4K] approx. 40min. (29.97p)
[Full HD] approx. 45min. (59.94p)
- Continuance battery life of movie capture*4
- *Face detection is set to OFF
- [4K] approx. 55min. (29.97p)
[Full HD] approx. 75min. (59.94p)
Dimensions132.5mm (W) x 92.8mm (H) x 58.8mm (D) (minimum depth 35.4mm)WeightApprox. 539g (including battery and SD memory card)
Approx. 489g (excluding battery and SD memory card)Operating Temperature-10?C – +40?COperating Humidity10 – 80% (no condensation)Starting up period
- * Fujifilm research
Accessories includedLi-ion battery NP-W126S
Battery charger BC-W126S
Shoe-mount flash unit EF-X8
Shoulder strap, Body cap
Clip attaching tool
Hot shoe cover
Vertical Grip connector cover
Connector cover (detachable)
Sync terminal cover
Cable protector Owner’s manual
- *1Please see the Fujifilm website (http://www.fujifilm.com/support/digital_cameras/compatibility/card/x/) to check memory card compatibility.
- *2Exif 2.3 is a digital camera file format that contains a variety of shooting information for optimal printing.
- *3The Electronic Shutter may not be suitable for fast-moving objects. Flash can not be used.
- *4Approximate number of frames that can be taken with a fully-charged battery based on CIPA standard.
Memory Card Capacity and Image Quality / Size
All figures are approximate; file size varies with the scene recorded, producing wide variations in the number of files that can be stored.
|Modes||Still image (L)|
|Number of recorded pixels||6240 x 4160 (3:2)|
|Quality||JPEG FINE||JPEG NORMAL|
|SDHC / SDXC memory card||4 GB||250||370|
|Modes||Still image (M)|
|Number of recorded pixels||4416 x 2944 (3:2)|
|Quality||JPEG FINE||JPEG NORMAL|
|SDHC / SDXC memory card||4 GB||490||740|
