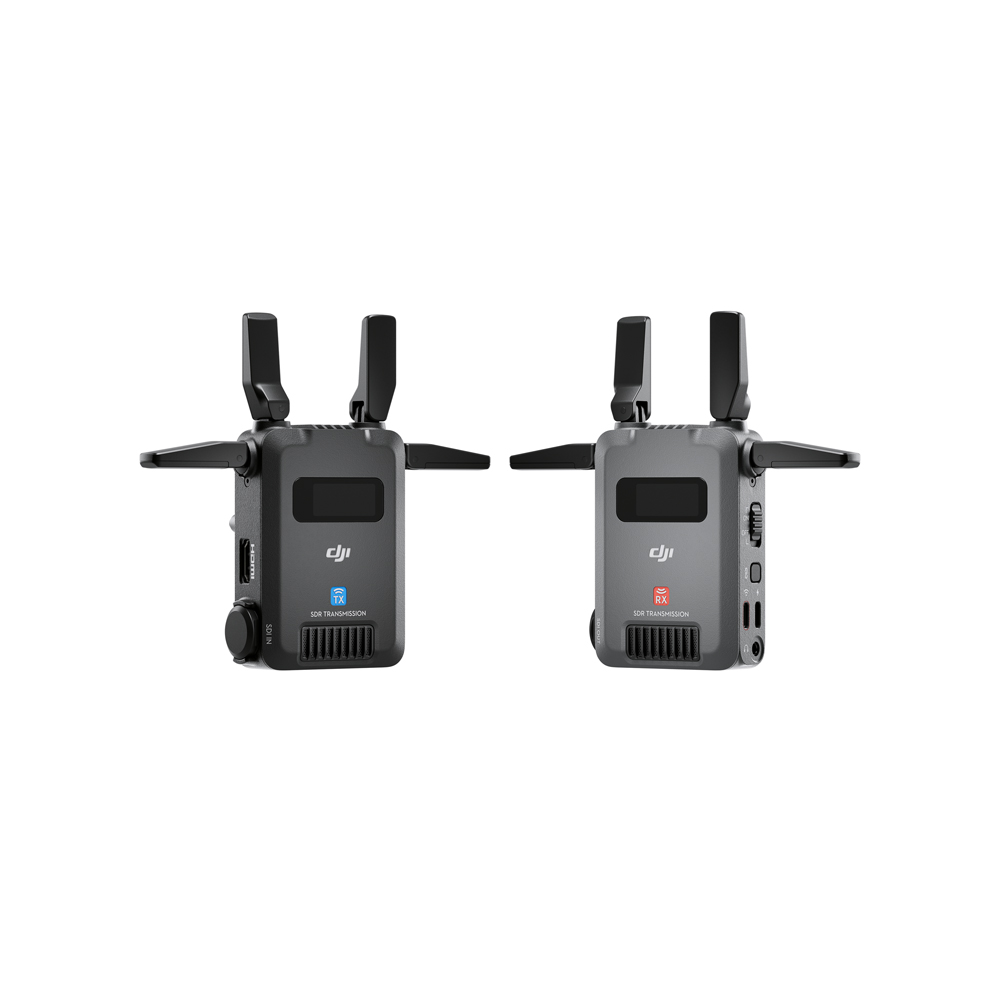

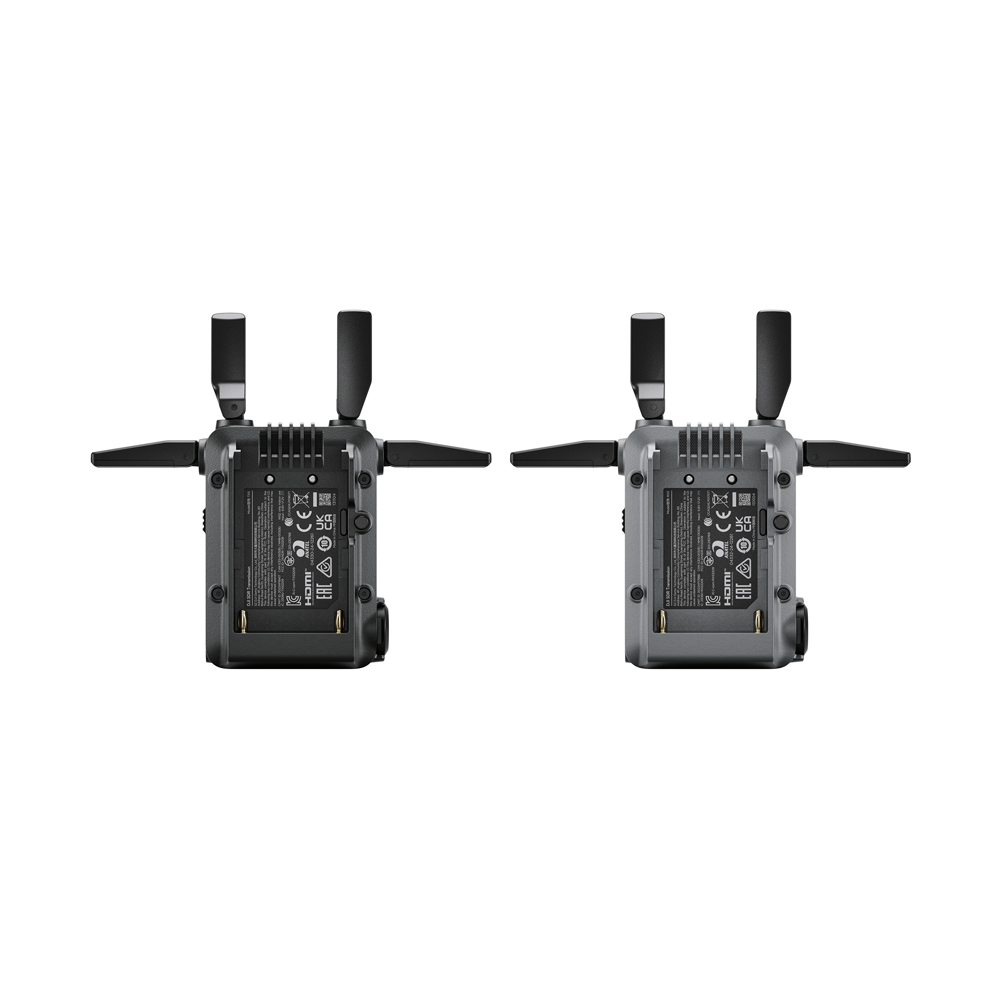

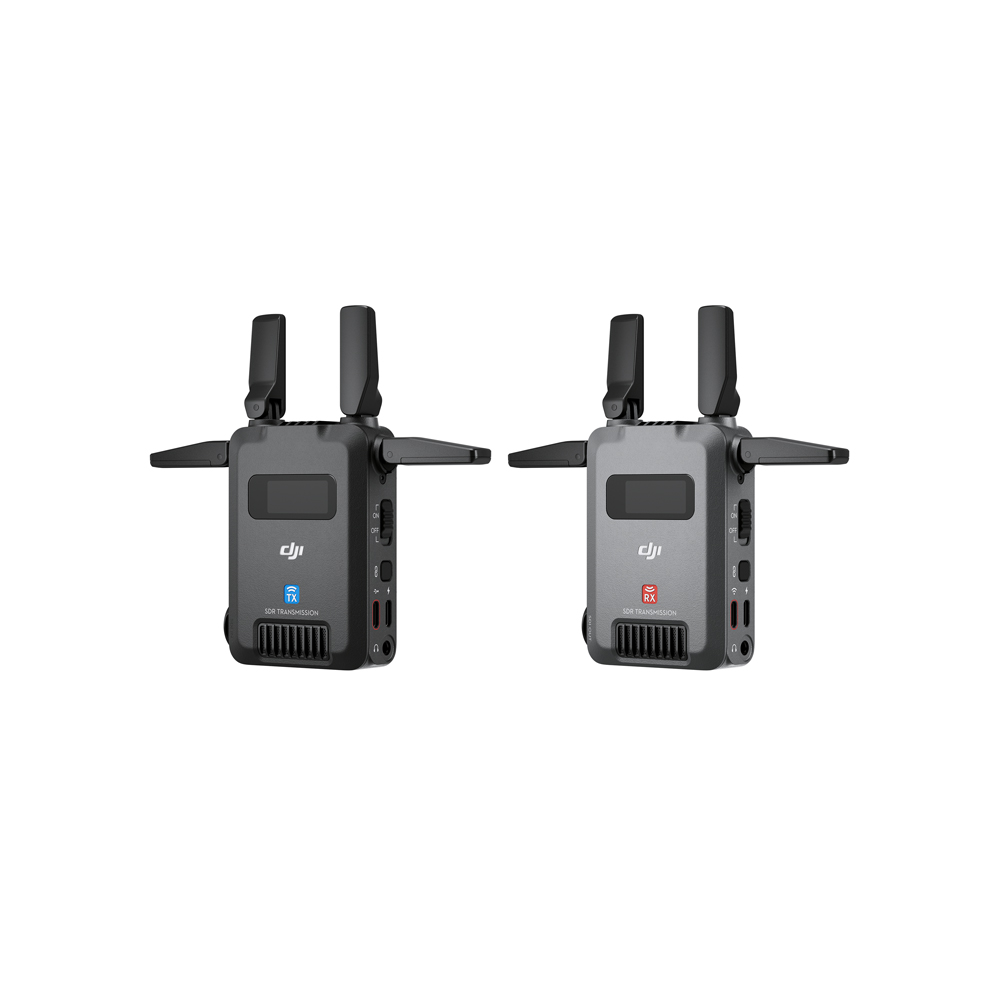

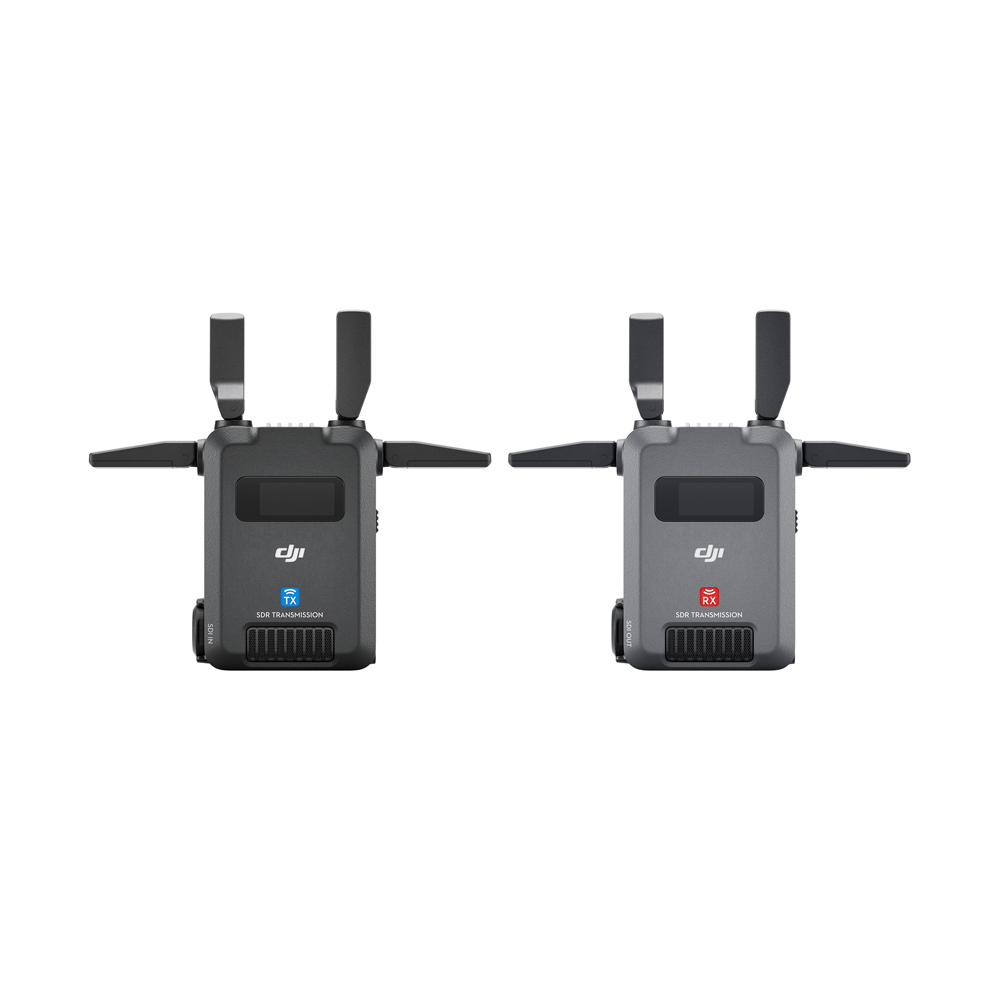

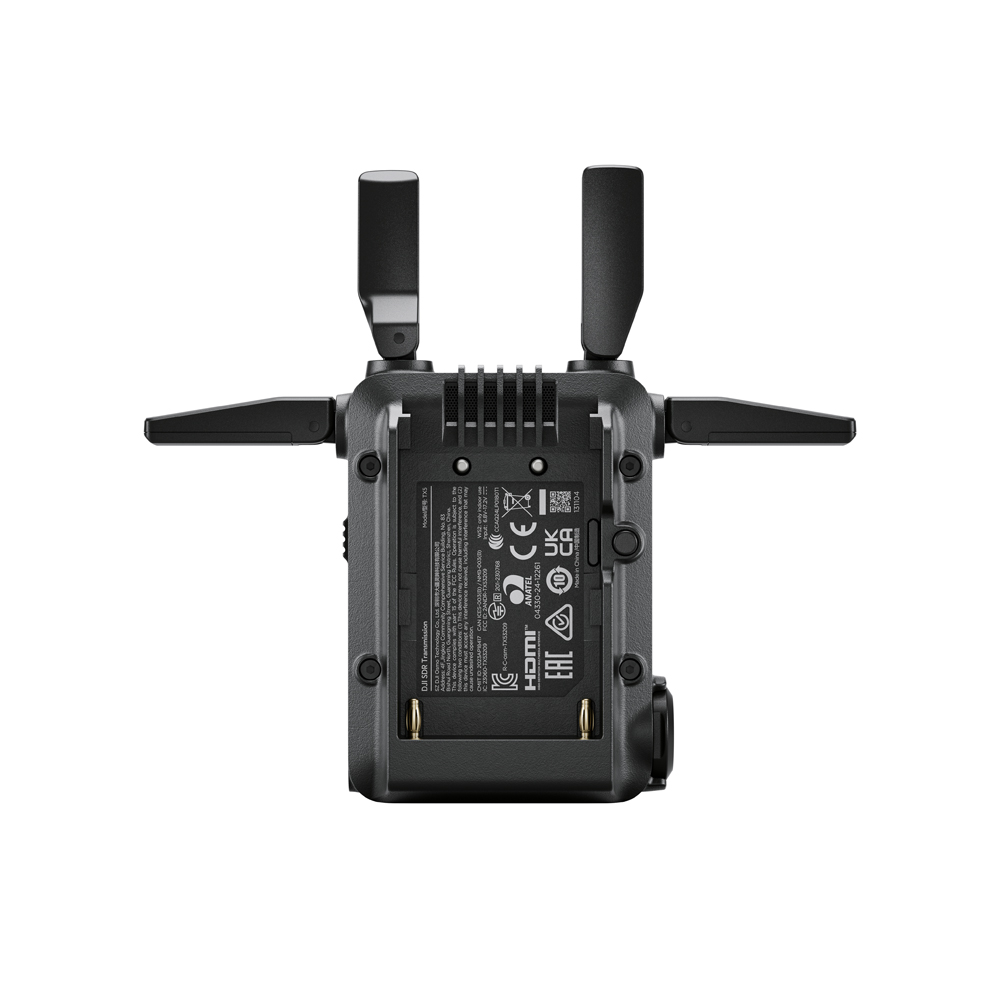

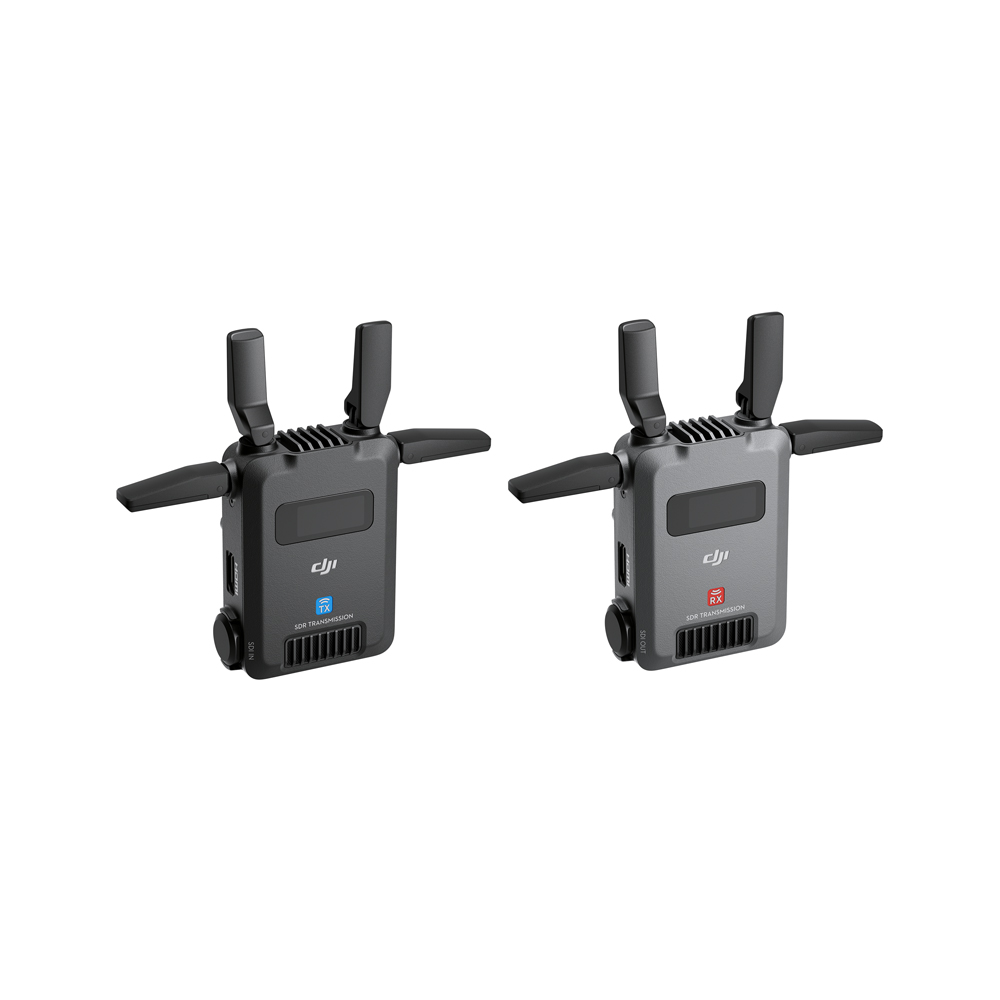

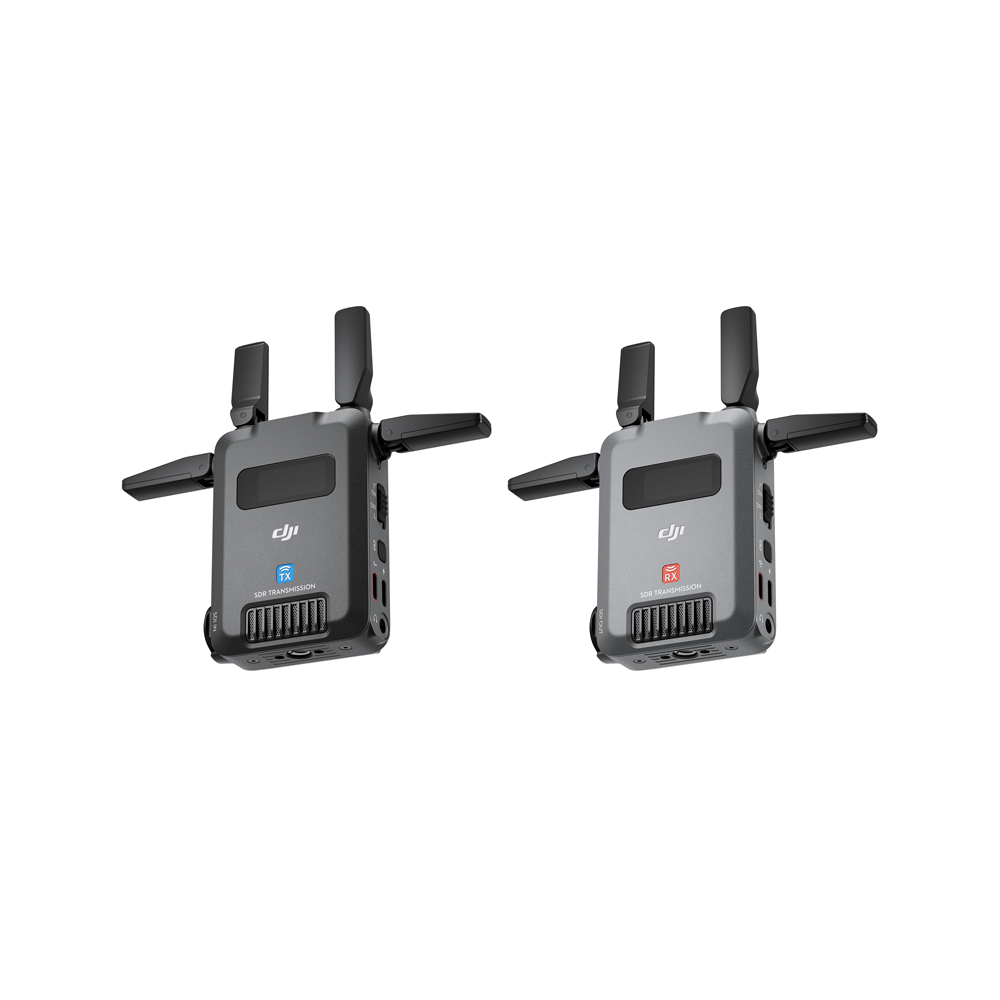

DJI SDR Transmission (ประกันศูนย์) (กรุณาเช็คสินค้าก่อนสั่งซื้อ)

• Weight
  Approx. 145 g (including antennas)

• Dimensions
  86.5×64×32 mm (L×W×H, excluding antennas)

• Ports
  SDI Input Port
  HDMI Input Port
  3.5mm Stereo Jack
  USB-C Firmware Update Port
  USB-C Power and Gimbal Communication Port

• Operating Frequency
  SDR Operating Frequency
  Non-DFS Frequency Band:
  2.4000-2.4835 GHz
  5.725-5.850 GHz
  DFS Frequency Band:
  5.470-5.725 GHz
  ^{5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.}
  Wi-Fi Operating Frequency
  2.4000-2.4835 GHz
  5.150-5.250 GHz

• Transmitter Power (EIRP)
  SDR:
  2.4000-2.4835 GHz:
  < 30 dBm (FCC)
  < 20 dBm (SRRC/CE/MIC)
  5.470-5.725 GHz:
  < 30 dBm (FCC)
  < 23 dBm (CE/MIC)
  5.725-5.850 GHz:
  < 30 dBm (FCC)
  < 14 dBm (CE)
  ＜30 dBm (SRRC)
  Wi-Fi:
  2.4000-2.4835 GHz:
  < 26 dBm (FCC)
  < 20 dBm (SRRC/CE/MIC)
  5.150-5.250 GHz:
  < 26 dBm (FCC)
  < 23 dBm (SRRC/CE/MIC)

• Wi-Fi Protocol
  802.11b/a/g/n/ac/ax
  Supports 2×2 MIMO Wi-Fi

• Max Bandwidth
  SDR:
  20 MHz
  Wi-Fi:
  20 MHz

• Max Bitrate
  SDR:
  20 Mbps*
  Wi-Fi:
  8 Mbps
  ^{* Measured in Control mode, with Broadcast mode turned off.}

• Power Consumption
  8.2 W
  ^{Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.}

• Power Supply
  USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
  USB-C Power Supply Type 2: 6.8-17.2 V DC
  NP-F Battery Power Supply Voltage: 6.8-8.4 V

• Input Video Format
  1080p: 23.98/24/25/29.97/30/50/59.94/60fps
  1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
  720p: 50/59.94/60fps

• Input Audio Format
  SDI embedded, HDMI embedded

• Video Transmission System
  SDR + Wi-Fi

• Video Transmission Latency
  SDR:
  80 ms* (including camera and screen display latency)
  35 ms* (excluding camera and screen display latency)
  Wi-Fi:
  110 ms**
  ^{* Measured when shooting 1080p/60fps video with Broadcast mode turned off.
  ** Measured when shooting 1080p/60fps video.}

• Video Coding Format
  H.264

• Max Transmission Distance
  SDR:
  3 km (FCC)*
  2 km (CE/SRRC/MIC)*
  Wi-Fi:
  200 m
  ^{* Measured in Control mode, with Broadcast mode turned off.}

• Operating Temperature
  -10° to 40° C (14° to 104° F)

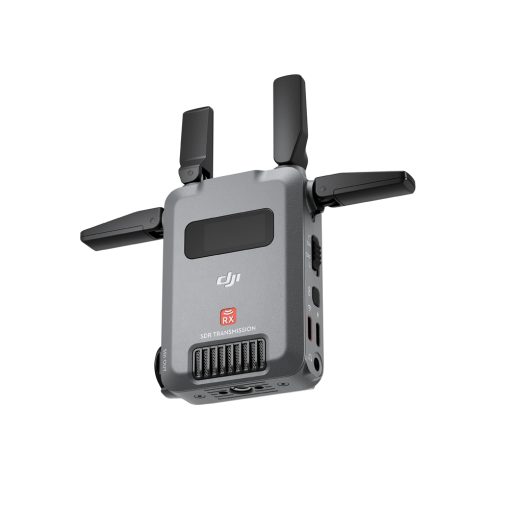

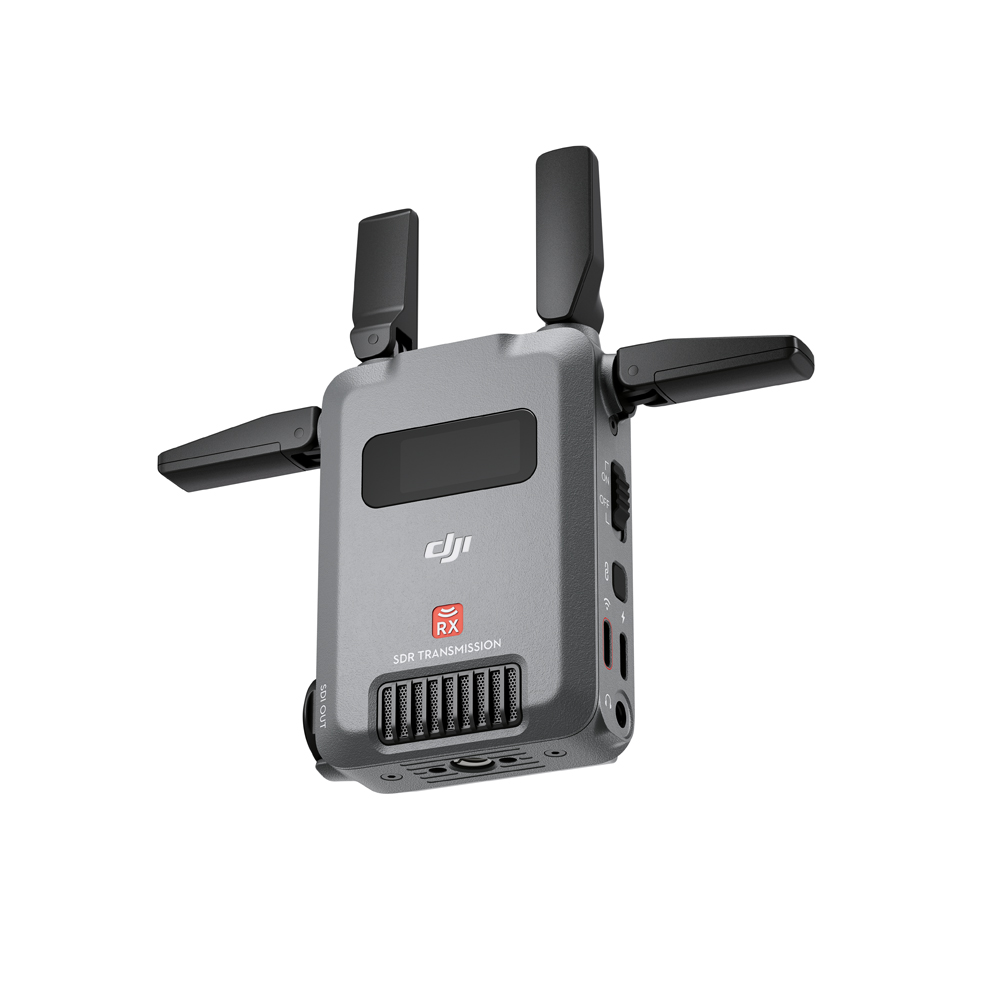

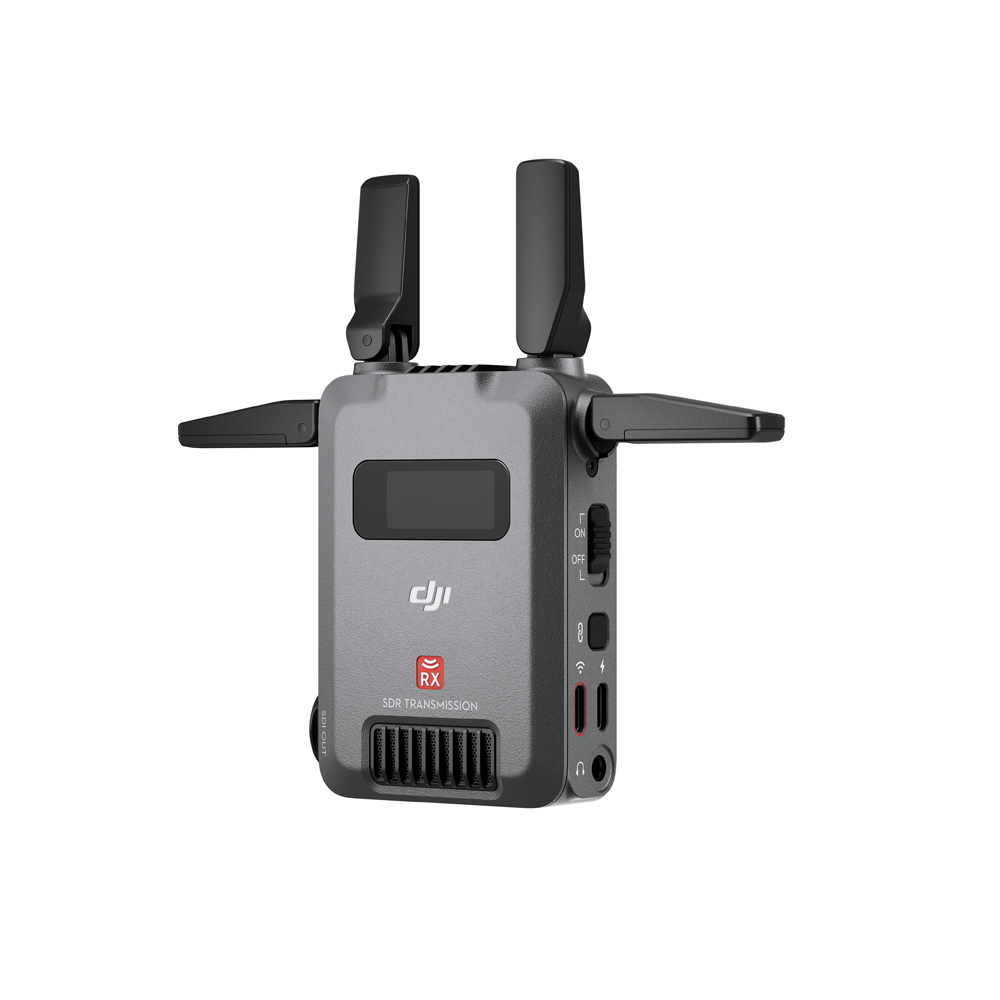

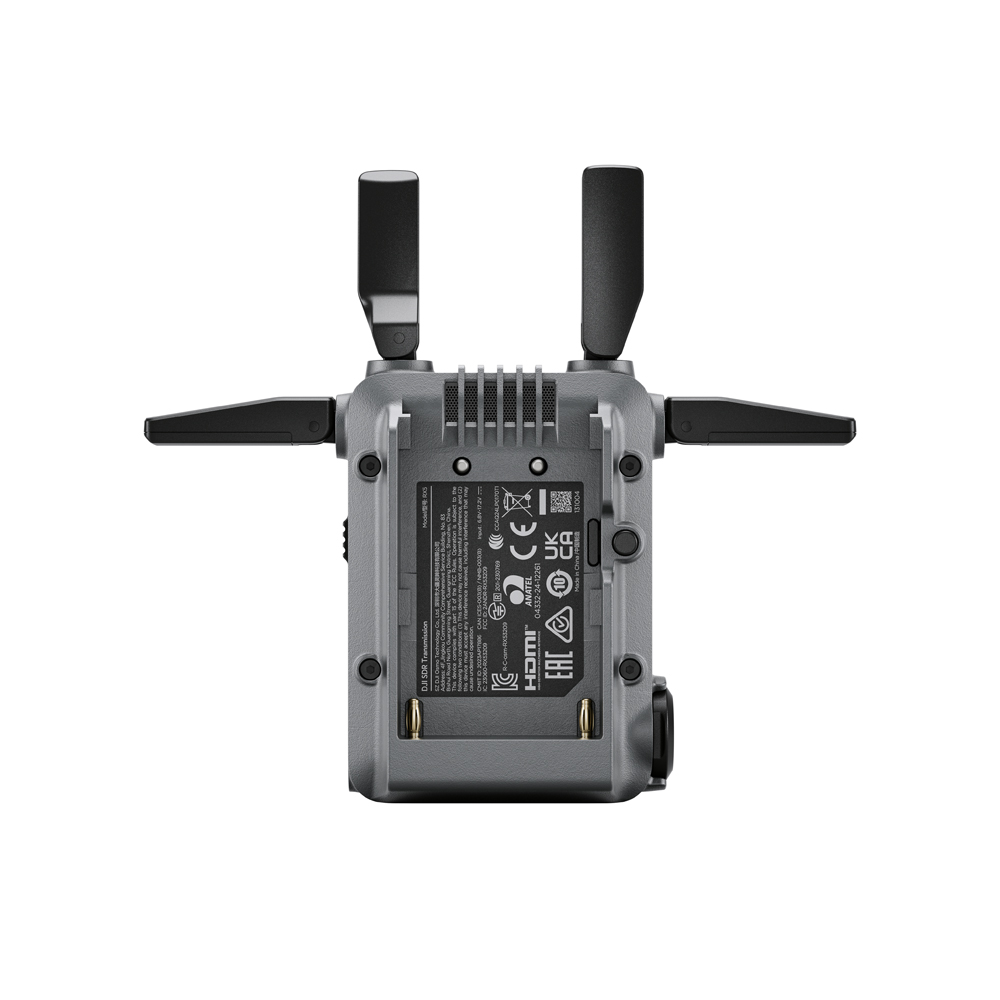

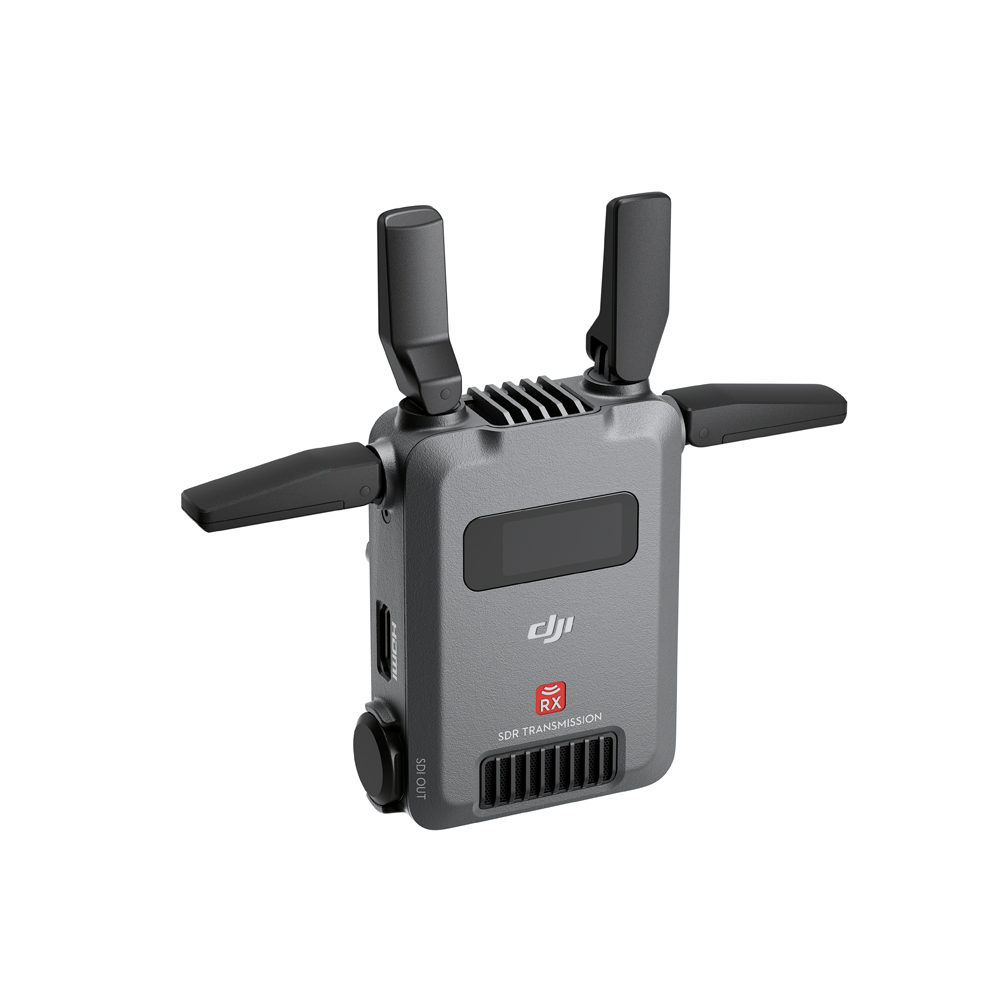

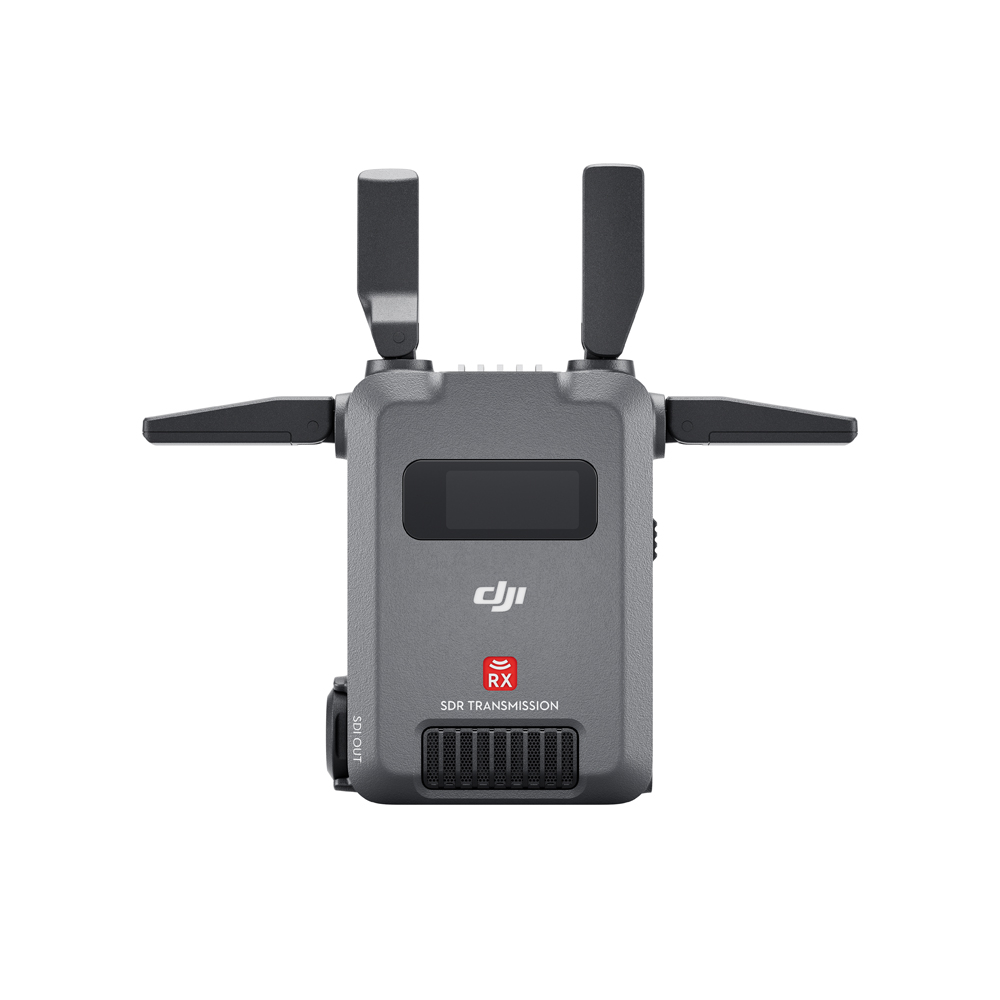

Receiver

• Weight
  Approx. 145 g (including antennas)

• Dimensions
  86.5×64×32 mm (L×W×H, excluding antennas)

• Ports
  SDI Output Port
  HDMI Output Port
  3.5mm Stereo Jack
  USB-C Firmware Update and Video Output Port
  USB-C Power Port

• Operating Frequency
  SDR Operating Frequency
  Non-DFS Frequency Band:
  2.4000-2.4835 GHz
  5.725-5.850 GHz
  ^{5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information.}

• Transmitter Power (EIRP)
  SDR:
  2.4000-2.4835 GHz:
  < 30 dBm (FCC)
  < 20 dBm (SRRC/CE/MIC)
  5.725-5.850 GHz:
  < 30 dBm (FCC)
  < 14 dBm (CE)
  < 23 dBm (SRRC)

• Max Bandwidth
  20 MHz

• Max Bitrate
  20 Mbps
  ^{Measured in Control mode, with Broadcast mode turned off.}

• Power Consumption
  8.3 W
  ^{Measured at a room temperature of 25° C (77° F), when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.}

• Power Supply
  USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
  USB-C Power Supply Type 2: 6.8-17.2 V DC
  NP-F Battery Power Supply Voltage: 6.8-8.4V

• Output Video Format
  1080p: 23.98/24/25/29.97/30/50/59.94/60fps
  1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
  720p: 50/59.94/60fps

• Output Audio Format
  PCM

• Video Transmission System
  SDR

• Video Transmission Latency
  80 ms (including camera and screen display latency)
  35 ms (excluding camera and screen display latency)
  ^{Measured when shooting 1080p/60fps video with Broadcast mode turned off.}

• Video Coding Format
  H.264

• Max Transmission Distance
  3 km (FCC)
  2 km (CE/SRRC/MIC)
  ^{Measured in Control mode, with Broadcast mode turned off.}

• Operating Temperature
  -10° to 40° C (14° to 104° F)
